Northern California’s earthquake story just got a lot more complicated.
Scientists digging deeper into the region’s geology say the seismic danger there may be greater than anyone realized — not because the ground has changed, but because our understanding of what’s happening underneath it has.
For years, researchers believed they had a solid grasp on how the Mendocino Triple Junction worked.
Turns out, they were only seeing part of the picture.
The Old Map Everyone Trusted

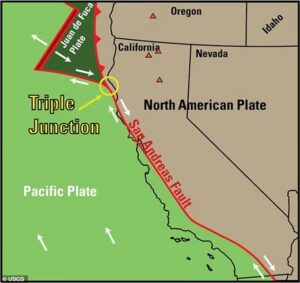

The Mendocino Triple Junction has long been described as a tidy meeting point of three massive tectonic players.
The San Andreas Fault was thought to taper off there, the Cascadia Subduction Zone to take over to the north, and the Mendocino Fault to slice eastward offshore.
With three powerful fault systems colliding in one spot, the area was already considered one of the most earthquake-prone regions in the country — capable of producing a quake as strong as magnitude 8.0.
That alone put it firmly on scientists’ watchlists.
What Scientists Found Beneath the Surface
New research suggests that the “triple” junction label may be misleading.
Instead of three tectonic plates meeting neatly, scientists now believe there are at least five moving pieces involved — some of them buried so deep they leave no trace at the surface.
That discovery matters. If earthquake models are built around an oversimplified structure, they may be missing key stress points underground.
In practical terms, that could mean seismic risk has been underestimated, not just locally but along large stretches of the West Coast.
Why This Changes the Risk Picture
Because the Mendocino region sits offshore and influences both the San Andreas and Cascadia systems, any revision to how it works could ripple outward. Millions of people from Northern California up through the Pacific Northwest rely on hazard models that assume we know where stress is building.
Geophysicist Amanda Thomas from the University of California, Davis, summed it up plainly: if scientists don’t fully understand how plates interact below ground, predicting earthquakes becomes a guessing game.
An Iceberg You Can’t See
Researchers compare the newly revealed fault system to an iceberg — what’s visible at the surface is only a small fraction of what’s really there.
Beneath the ocean floor and deep within the Earth’s crust, plates grind, snap, and slide in ways that aren’t obvious from above.
Those hidden movements could store energy differently than current models assume, raising the possibility that future earthquakes might be stronger or behave differently than expected.
A Clue From a Strange 1992 Earthquake
Suspicion that something wasn’t adding up dates back decades.
In 1992, a magnitude 7.2 earthquake struck the area at an unusually shallow depth.
That didn’t quite fit with existing models of where the plate boundaries were supposed to be.
According to David Shelly of the US Geological Survey, surface observations only tell part of the story.
The real challenge is figuring out how everything is arranged deep below, where direct observation is impossible.
Listening to Earth’s Quietest Quakes
To solve that puzzle, scientists turned to tiny, barely detectable earthquakes known as low-frequency events.
These micro-quakes happen deep underground as plates slowly scrape past one another and are thousands of times weaker than anything people can feel.
By using a dense network of seismometers across the Pacific Northwest, researchers tracked these faint signals and mapped out where movement was actually happening.
When the Moon and Sun Lend a Hand
To double-check their findings, the team looked to an unlikely source: tides.
Just as the moon and sun tug on Earth’s oceans, they also exert subtle forces on the planet’s crust.
When those gravitational pulls lined up with the direction certain plates were moving, scientists noticed a spike in the tiny earthquakes.
That pattern helped confirm that their new plate configuration made sense.
Five Pieces Instead of Three
The updated model paints a much messier picture of the Mendocino region.
At the southern end of the Cascadia Subduction Zone, a chunk of the North American plate appears to have broken off and is sinking along with the Gorda plate beneath the continent.
Farther south, the Pacific plate is dragging another block of rock — known as the Pioneer fragment — northward underneath North America.
The fault separating that fragment from the continent runs almost flat and is completely hidden from view.
A Ghost From an Ancient Plate
The Pioneer fragment itself is a leftover from the long-gone Farallon plate, which once hugged California’s coastline millions of years ago before mostly vanishing beneath the continent.
This hidden geometry also helps explain why the 1992 earthquake struck so shallowly: the surface of the sinking plate lies much higher than scientists had assumed.
As researcher Materna put it, faults don’t always follow the rules geologists expect.
In this case, the true plate boundary simply isn’t where people thought it was.
What’s Next?
The findings don’t mean a major earthquake is imminent — but they do suggest the rules governing seismic risk in Northern California may need rewriting. Scientists will now work to update hazard models and refine forecasts using this more detailed view of what’s happening underground.
In the meantime, the discovery is a reminder that Earth still has plenty of secrets beneath our feet — and that even well-studied regions can surprise us when we look a little deeper.
